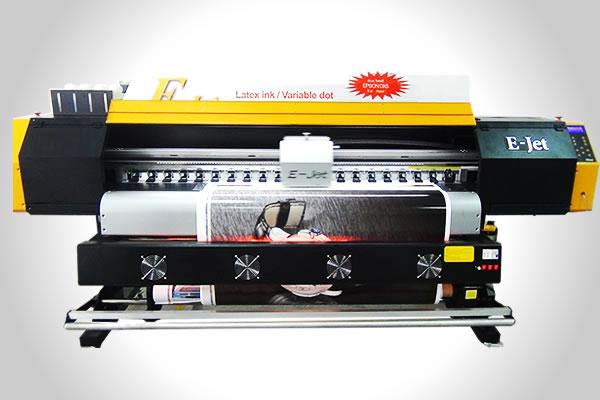

Total-Jet: E series
(Dual EPSON DX5 print head)

Cost-effective variable dot printer

Ink consumable,Solvent ink,Mild-solvent ink,Eco-solvent ink,Printing
.High quality model: 720 x 1440 dpi 12m²/hr
.Production model: 360 x 1440 dpi 25m²/hr
.High speed model: 360 x 720 dpi 42m²/hr

E-Jet 2014
new updateversion 13 modification

Y axis crossbeam becomes wider
The pressing wheels increases from 14 to 21
Add the Led lights
The pre-heat platform changes from rhombus to circlar arc type
Add a tension system to the taking up system
Take up system now is taking material with motor
Release system now is releasing withouth motor
Print platform width increases from 115 mm to 168 mm
Eletrical power supply system changes from seperate ones into the overall power supply
Add the new installation for carriage manual lifiting
The under holder structure changed from seperate parts into a whole one
The ink damper changes from non-returning valve to common installation
Add the sencond ink box with floating switch


  E series Specification
Print head   Dual EPSON DX5 print head
Minimum 1.8 pl variable ink-drop nozzle
Absorb ink automatically, ink stack protect system, release cloth easily, optional tension system.
Charging method   Motor accompanies with motor and tension system
Media
Modalities: R2R media
Specification: max width 1.8 meter
unlimited length
Classifications: banner、sublimation paper、PE、PP、ABS、PU、Vinyl
Inks   4 colors or 6 colors - Apply for Eco solvent、Water based、Dye sublimation ink
Print format   PDF、PS、EPS、TIFF、AI,etc. (RGB/CMYK)
RIP   PhotoPrint、Seeget
Environment & power
Temperature:
20-30℃
Humidity: 45-75%RH
Gross power: 220v 15A
Format dimensions   L X W X H (mm): 3000x800x1460mm
Weight   260KG

  Stable & Simple
with Quality
